Microscopy > Microscopy accessories > Cameras > Cameras > Nikon > DS > Nikon Camera DS-Qi2, Mono, 16.25MP, USB3.0, CMOS, F-mount
Product no.: 65551

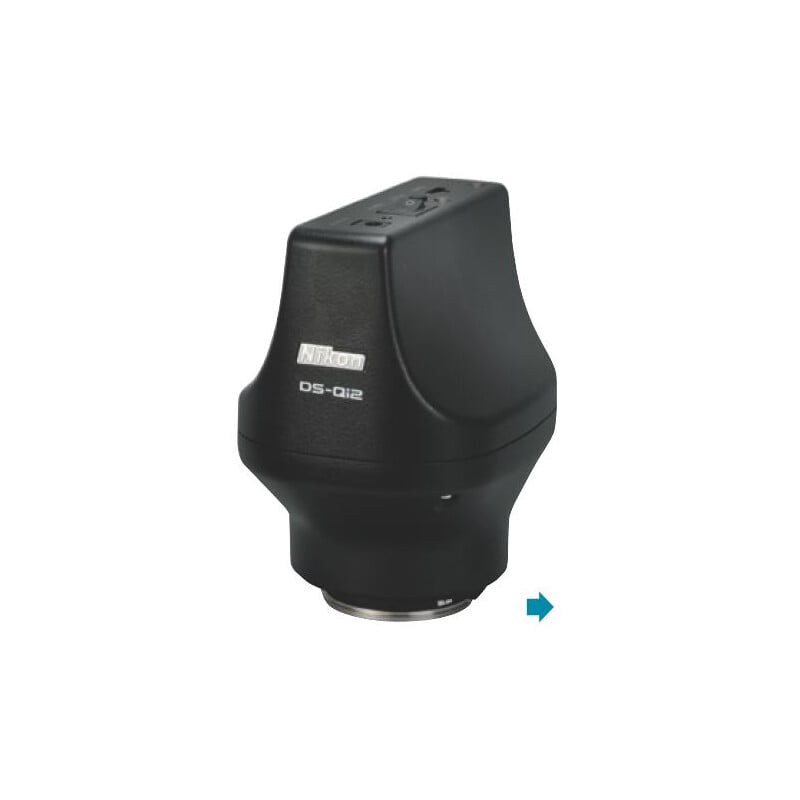

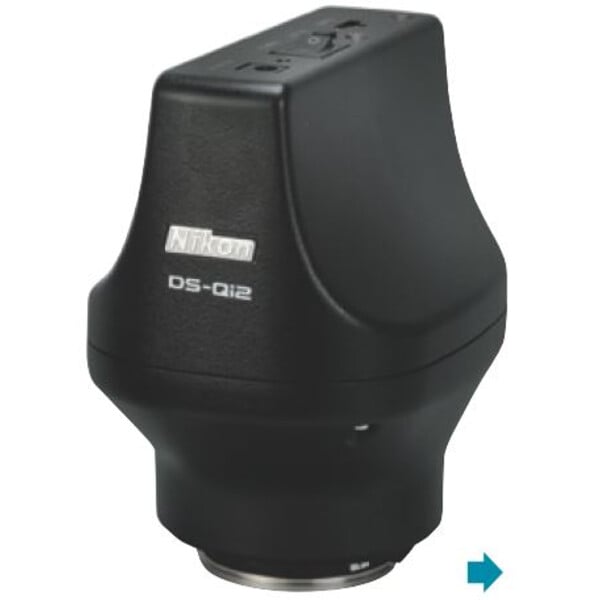

Camera DS-Qi2, Mono, 16.25MP, USB3.0, CMOS, F-mount

$ 16,400.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

No delivery possible before christmas
Check alternatives on stock or order a voucher!


Product description

DS-Fi3, color, CMOS, 5.9MP, USB 3.0

DS-Fi3

Compact, high-definition, high-speed and high-sensitivity C-mount camera.

DS-Fi3 is a high-definition color microscope camera equipped with a 5.9 megapixel CMOS image sensor. Its high-speed data readout, superior color reproduction and high quantum efficiency are optimal for imaging in various observations, such as brightfield, DIC, phase contrast and fluorescence observation.

High definition imaging

DS-Fi3 is equipped with a 5.9 megapixel CMOS image sensor, which enables the capture of high-definition images of up to 2880 x 2048 pixels. With this new CMOS image sensor and high-speed data transfer via USB 3.0, DS-Fi3 enables fast focusing even in high-resolution imaging, and efficient image acquisition when using a wide range of illumination techniques.

High sensitivity and low noise

The DS-Fi3 has significantly higher quantum efficiency and lower readout noise than conventional models. It allows for the capture of brighter images with higher S/N ratios in fluorescence observation modes.

High-speed live display

Due to the high-speed data readout by the CMOS image sensor and high-speed USB3.0 data transfer, the DS-Fi3 displays live images of full 2880 x 2048-pixel images at 15 fps, and 1440 x 1024-pixel images at 30 fps. This enables smooth display during focusing and the selection of observation locations.

Excellent color reproducibility

Nikon is well known for outstanding and lifelike color reproduction, and developing superior algorithms for creating results that look like the actual samples. These algorithms are used in all of the color cameras in the digital sight lineup.

Direct connection to a PC

The DS-Fi3 allows direct connection to a PC via a USB3.0 interface to control the camera and capture images using NIS-Elements imaging software.

Specifications

Capacity


Size of chip (mm)
1/1.8"
Megapixel
5.9
Image format
6,91x4,92mm
Resolution Photograph (Pixel)
1280x 960
Extendable storage
-
Zoom (digital)
-
Optical zoom
-
LCD screen
-
Resolution video (Pixel)
1440x1024
TV output
-
Interface
USB 3.0
Power supply
USB 3.0
Video function
yes
Sensitivity to light (Lux)
ISO3200

Camera


Megapixel
16.25
Peltier cooling
no
Colour camera
no
Image transmission
USB 3.0

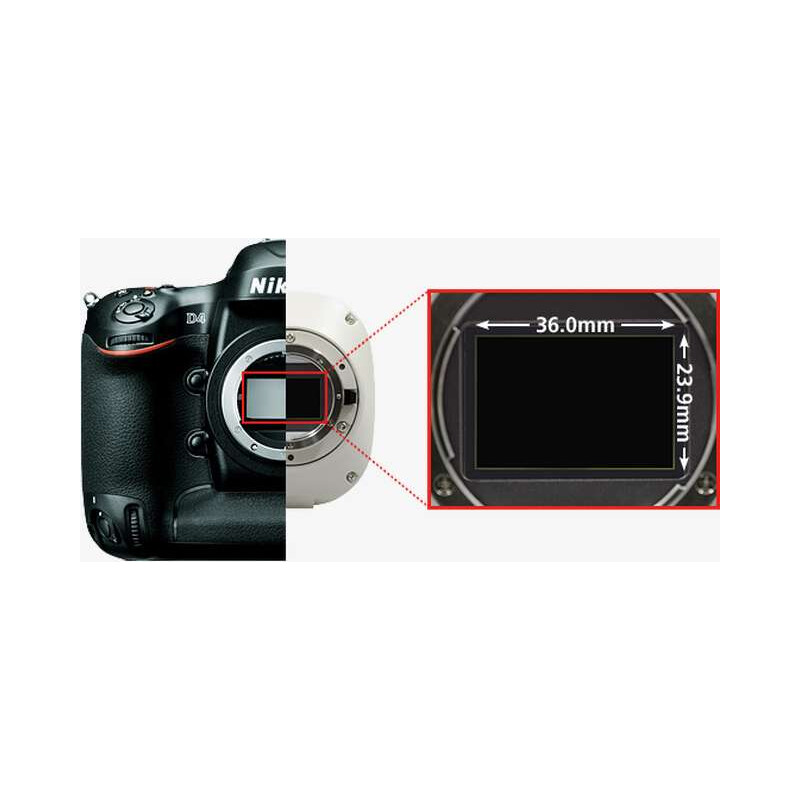

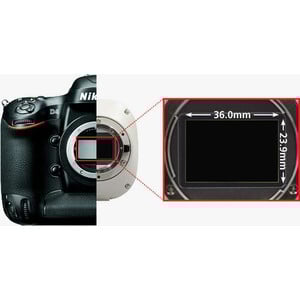

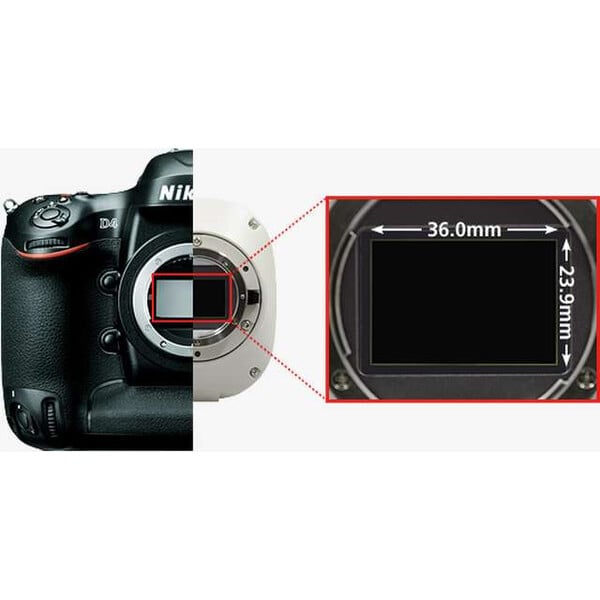

Size of chip (″)
full frame
sensor
CMOS
Pixel size
7.3 x 7.3
adapter required
4x
Resolution Photograph (Pixel)
4908x3264
frame rate (fps)
45
Shutter
Rolling Shutter
Min. exposure time (ms)
0.1
Max. exposure time (ms)
120000
Sensitivity (mV/s)
ISO800-51200
Software
NIS-Elements
Supported operating systems
Win 7/8/10

General


Colour
black
Weight (g)
1200

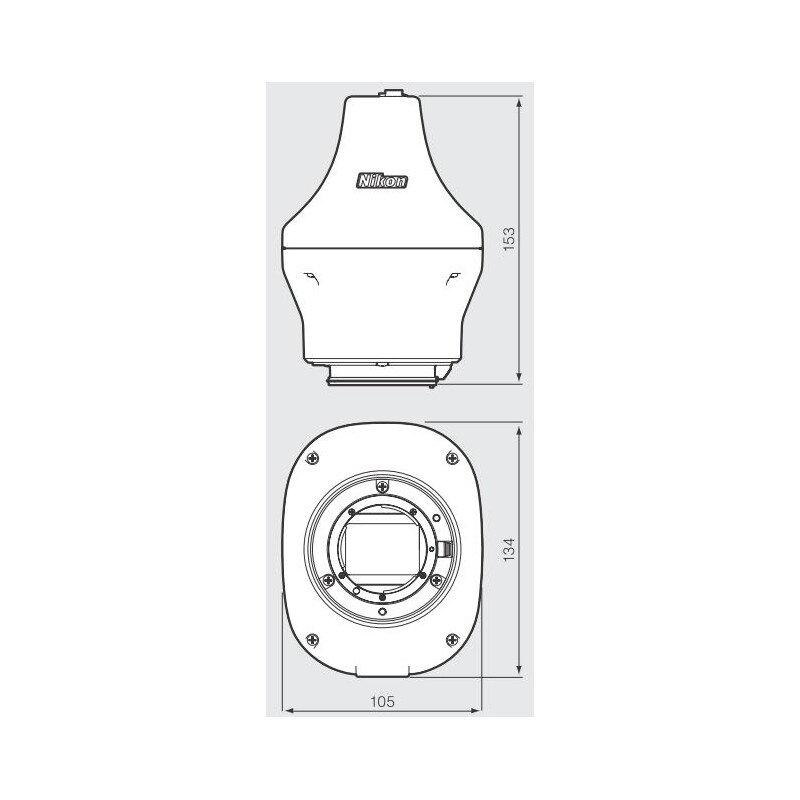

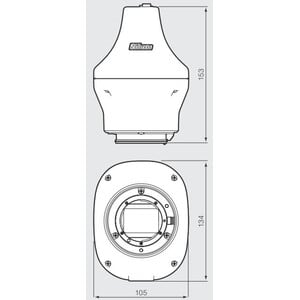

Length (mm)
105
Width (mm)
134
Height (mm)
153
Series
DS

Miscellaneous


supplier product number
MQA17500
