Microscopy > Microscopy accessories > Cameras > Cameras > Euromex > CMEX > Euromex Camera CMEX-1, 1.3 MP, 1/2.5", CMOS, USB2.0
Product no.: 47303

Camera CMEX-1, 1.3 MP, 1/2.5", CMOS, USB2.0

$ 236.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

No delivery possible before christmas
Check alternatives on stock or order a voucher!


Product description

More about the series CMEX...

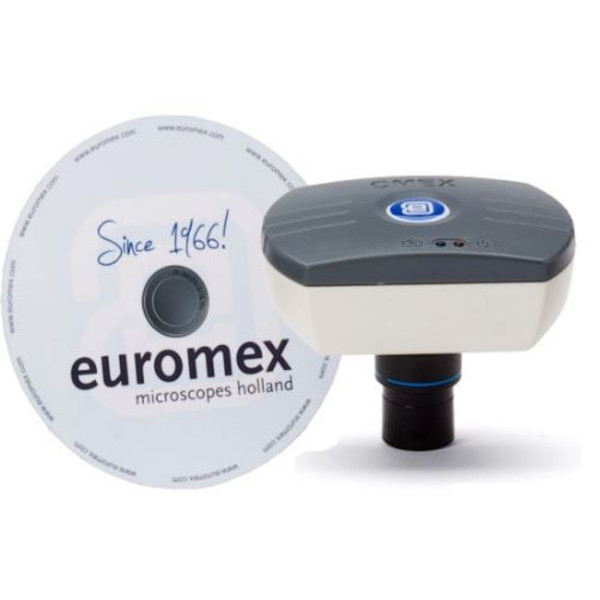

CMEX-1 digital 1.3 Mpix USB-2 CMOS camera DC.1300c

The Euromex CMEX-1 1.3 Mpix USB-2 CMOS camera and ImageFocus 4 analysing software are the perfect solution for modern digital microscopy for teaching, basic industrial applications and for demanding amateurs. Suitable for biological and metallurgical microscopes as well as for stereomicroscopes

Sensor: 1/3" CMOS

Pixels: 1.3 megapixels

Output: High resolution 1280 ×1024 pixels format

Pixel Size: 3.6 µm × 3.6 µm

Frame Rate: @ 1280 x 1024 pixels up to 15 f/s depending camera settings and illumination; @ 640 x 480 pixels up to 30 f/s depending camera settings and illumination;

Color filter: RGB

Mount: C/CS-mount

ADC: 10 bits

Color depth: 24 bits

Signal/Noise ratio: 55 db

Dynamic range: 72 db

Sensitivity: > 1.3 V/lux @ 550 nm

Exposure: Automatic or manual from 1 ms to 300 ms

Interface: High Speed USB 2.0 (480 Mb/s)

Non-compressing real-time image data.High sensitivity camera features, suitable Bright Field, Dark Field, Phase Contrast, Epi-illumination. Very convenient to use, fits a standard 23.2 mm trinocular tube or eyepiece tube. Supplied with USB 2.0 cable

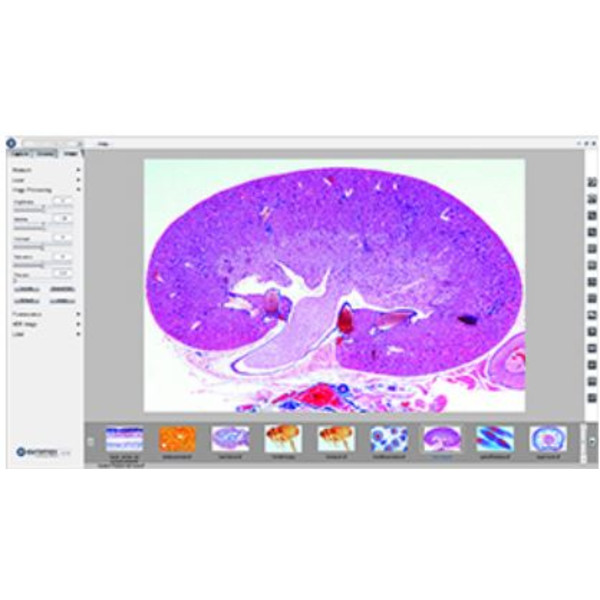

To be used with Euromex ImageFocus 4 software, which can be freely downloaded. The software works solely with CMEX-1, CMEX-3, CMEX-5, CMEX-10, CMEX Pro 3, CMEX Pro 5, sCMEX-1, sCMEX-3 and Euromex cooled CCD color camera captured images.Delivered with 0,35 x objective with C-mount, USB 2.0 cable, 30 and 30.5 mm adapters for stereomicroscopy, 76 x 24 mm calibration 1mm/100 slide, CDROM with ImageFocus 4 software, carton box. Compatible with Microsoft Windows XP, Windows Vista, Windows 7 and Windows 8, 32- and 64 bits.

Specifications

Capacity


Megapixel
1.3
frame rate (fps)
15

Camera


Megapixel
1.3
Pixel size
2,2
Interface
USB (480 Mbit/s)
Image format
1272x962
Peltier cooling
no
Colour camera
yes
Image transmission
USB 2.0
sensor
CMOS
Size of chip (″)
1/2.5
Resolution Photograph (Pixel)
1272x952
frame rate (fps)
30
Shutter
Rolling Shutter
Min. exposure time (ms)
1
Max. exposure time (ms)
300
Sensitivity (mV/s)
1.3 V/lux sec
adapter required
0.45x
Software
ImageFocus Plus
Supported operating systems
Win 7/8/10 Mac OS

General


Series
CMEX
Weight (g)
500
Length (mm)
81
Width (mm)
65
Height (mm)
78

Miscellaneous


supplier product number
DC.1300c
Euromex Camera CMEX-1, 1.3 MP, 1/2.5", CMOS, USB2.0
Euromex Camera CMEX-1, 1.3 MP, 1/2.5", CMOS, USB2.0
