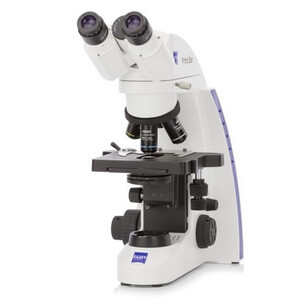

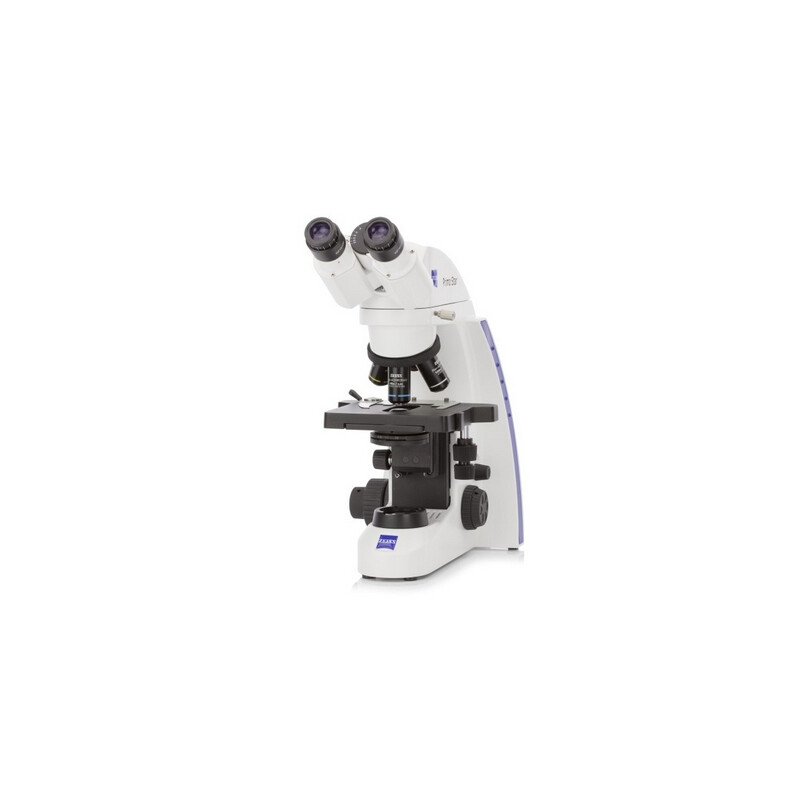

Name: ZEISS Microscope PrimoStar 3, Fix-K., Bi, SF20, 4 Pos., 100x oil, ABBE 0.9, 40x-1000x
Brand: ZEISS
Price: 1970 USD

Product description

More about the series PrimoStar 3...

Ready-to-use package. Tailored perfectly to your application. The fixed-Köhler version of Primostar 3 comes pre-adjusted with a large 20 mm FOV (field of view) - just plug and play.A useful selection of objective lenses and eyepieces is already in place.Additional plus: manage costs and energy with long-lasting LED illumination.

Specification Primostar 3

binocular tube 25°
objectives i-Plan-Achromat 4x, 10x, 40x
mechanical rackless stage 75x40, driveright and specimen holder for one slide with spring clip left -
Abbe condenser 0.9/1.25
Transmitted-light illumination LED 3W 5700K
external power unit 100...240VAC/50...60Hz/30VA with country-specific adapters
dust cover

Special Features:

Stand with handle
Eyepiece Field of view 20
4x nosepiece
Fixed Köhler

Specifications

Optics

Image scale

4-40

Condensor

NA 0.9/1.25 (Fixed Köhler)

Lens type

Plan, achromatic (infinity corrected)

Eyepiece

10/20

Power supply

100-240 V

Magnification

40-400

Lighting

Transmitted light

Objective 1

4 x / 0.1; WD: 6,50 mm

Objective 2

10 x /0,25 WD: 4,39 mm

Objective 3

40x/0,65 WD: 0,48 mm

Objective 4

100x/1.25

infinity corrected

yes

Optical system

infinity

Capacity

Brightness control

adjustable

Lamp type

LED

Temperature of color (K)

5700

Transmitted light

brightfield

yes

Mechanics

Type of build

binocular

Viewing posture (°)

25° angled eyepiece

Focusing

Coarse and fine movement

Specimen stage

Cross table

Revolver

Special features

Rechargeable battery operation

Built-in digital camera

Filter holder

yes

Luminous field diaphragm

yes

Dust cover bag

yes

General

Colour

white / blue

Weight (g)

8200

Width (mm)

190

Length (mm)

410

Height (mm)

395

Series

PrimoStar 3

Field of application

Medicine

yes

Education

yes

Area of application

University

yes

Internal medicine

yes

Dermatology

yes

Secondary school

yes

High School

yes

Urology

yes

Technical training

yes

Naturopathy

yes

Miscellaneous

supplier product number

415501-0081-000

show less...

Downloads

Booklet (EN)

Flyer (EN)
