Microscopy > Microscopes > Upright microscopes > Bright field microscopes > Evident Olympus > CX43 > Evident Olympus Microscope Olympus CX43 Standard, bino, LED, w.o. objectives!
Product no.: 53988

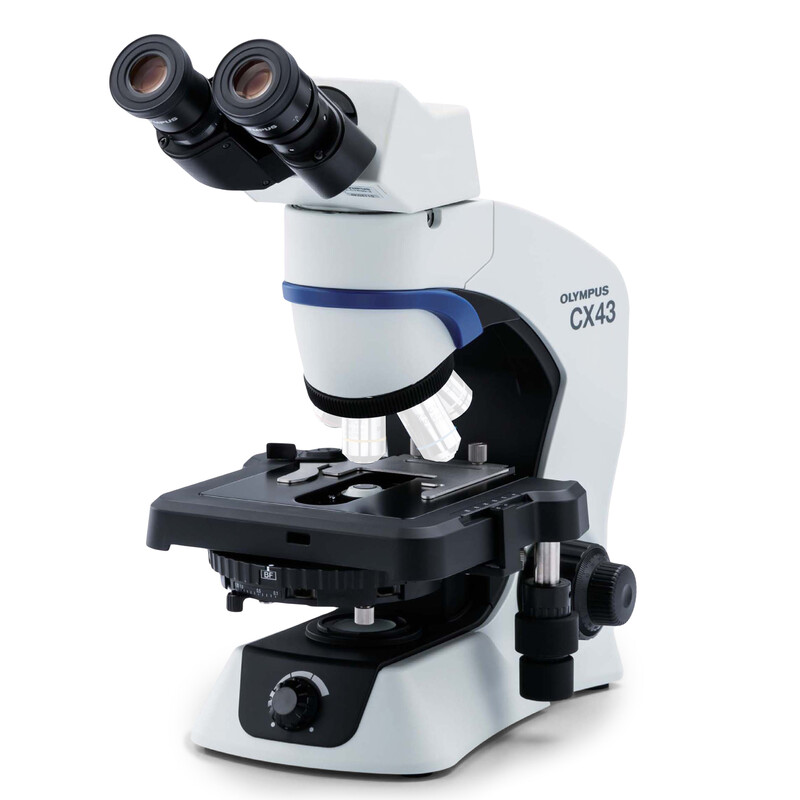

Microscope Olympus CX43 Standard, bino, LED, w.o. objectives!

$ 3,790.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

No delivery possible before Christmas. Order a voucher coupon!


Product questions?
advice for Microscopy

Product description

More about the series CX43...

Olympus CX43 Basic equipment (E07MIS0050)

Comfortable, High-Throughput Routine Microscopy

The CX43 microscope enable users to remain comfortable during long periods of routine microscopy observations. The microscope frame conforms to the user’s hands and the location of the control knobs maximize ergonomics to improve work efficiency. Users can quickly set a specimen with one hand, while adjusting the focus and operating the stage with the other hand with minimal movement. The microscope also features an optional camera port for digital imaging.

Upright microscope set for transmitted and reflected light observations

  • integrated LED illumination
  • low-positioned quintuple nosepiece
  • mechanical stage (211 x 154 mm, travelling range 76 x 52 mm) with right handle, low drive control, stage lock pin and specimen holder for one slide
  • Abbe condenser, NA 1.25
  • 7 position turret: BF(4X - 100X), 2X, DF, Ph1, Ph2, Ph3, FL with shutter
  • Coaxial/fine focus, complete stroke 15 mm, fine stroke 300 µm/rotation, graduation 2.5 μm,
  • binocular tube with two widefield eyepieces for FN20

Included components:

  • UYCP POWER CORD (035425)
  • DUST COVER f.CX31/41, CX20 (038159)
  • U-CBI (N1468300)
  • WHB10X-H (N1130000)
  • WHB10X-2 (N1129900)
  • CX43RF (N5731700)

Without objectives!!

Please choose your objectives from the accessories!

Specifications

Optics

Number of objectives
0
Lighting
Transmitted light
Condensor
Abbe
Lamp type
LED
infinity corrected
yes
Optical system
infinity
Eyepiece
10x/20

Capacity

brightfield
yes
Phase contrast
yes
Dark field
yes
Fluorescence
no

Mechanics

Type of build
binocular
Focusing
Coarse and fine movement
Specimen stage
Cross table (211 x 154 mm)
Revolver
5

Special features

Luminous field diaphragm
yes
Wide-angle eyepiece
yes (10x/22)

General

Width (mm)
211
Length (mm)
397
Height (mm)
393
Series
CX43
Weight (g)
7,3

Field of application

Medicine
yes
Hobby
yes
Biology
yes

Area of application

Naturalist
yes
Central laboratories
yes
Botany
yes
Microbiology
yes
Cytology & Pathology
yes
Marine Biology
yes

Miscellaneous

supplier product number
E0460050 (E07MIS0050)
show more...

Product safety

manufacturer: Evident Europe GmbH, Caffamacherreihe 8–10, 20355 Hamburg, DE, https://www.evidentscientific.com/
Product safety

Recommended accessories

Microscopy > Microscopy accessories (26)
no image

Evident Olympus Eyecup, 1 pcs, for CX22, WHB10X

$ 15.90*
+ Show more accessories in this category: 25
Microscopy > Microscopy supplies (10)

Bresser Immersion oil, 5ml, refractive index=1.515

$ 10.90*
Baseprice: $ 2,180.00/L
+ Show more accessories in this category: 9
Microscopy > Other (1)
Stereo zoom head

Evident Olympus Binocular Head U-CBI30-2-2, for CX41

$ 830.00*
Maintenance & Cleaning > Cleaning towelettes (3)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 4.90*
+ Show more accessories in this category: 2
Maintenance & Cleaning > Lens cleaners (3)

Omegon 7-in-1 lens cleaning set

$ 19.90*
+ Show more accessories in this category: 2

*All prices include VAT plus shipping costs.

show more...
Evident Olympus Microscope Olympus CX43 Standard, bino, LED, w.o. objectives!
Brightfield (Leukocyte)
Evident Olympus Microscope Olympus CX43 Standard, bino, LED, w.o. objectives!
Brightfield (urinary cast)
Evident Olympus Microscope Olympus CX43 Standard, bino, LED, w.o. objectives!
Phase contrast (Hela cells)

Customer reviews

There are no customer reviews for this product yet.

Compose your own review

Do you have specific questions about your order or products? Please contact our customer service!

Add your review now

Customers who bought this product also bought...

Evident Olympus Objective PLCN 40X/0.65 Plan Achromatic
$ 408.00
Evident Olympus Objective PLCN 40X/0.65 Plan Achromatic
 Evident Olympus PLCN 100XO/1.25 Plan Achromatic Objective with oil immersion
$ 710.00
Evident Olympus PLCN 100XO/1.25 Plan Achromatic Objective with oil immersion
 Evident Olympus Objective PLCN20X/0.4 Plan Achromatic
$ 304.00
Evident Olympus Objective PLCN20X/0.4 Plan Achromatic
 Evident Olympus Objective PLCN10X/0.25 Plan Achromatic
$ 232.00
Evident Olympus Objective PLCN10X/0.25 Plan Achromatic

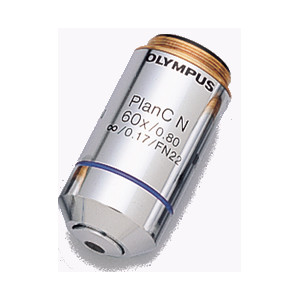

 Evident Olympus Objective PLCN 60X/0.8 Plan Achromatic
$ 740.00
Evident Olympus Objective PLCN 60X/0.8 Plan Achromatic

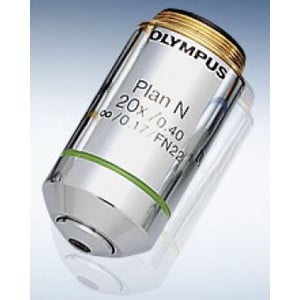

 Evident Olympus PLN20X/0.4 Plan Achromat Objective
