Microscopy > Microscopes > Upright microscopes > Bright field microscopes > Euromex > BioBlue > Euromex Microscope BioBlue, BB.4220, mono, DIN, 40x-400x, 10x/18, LED, 1W
Product no.: 44264

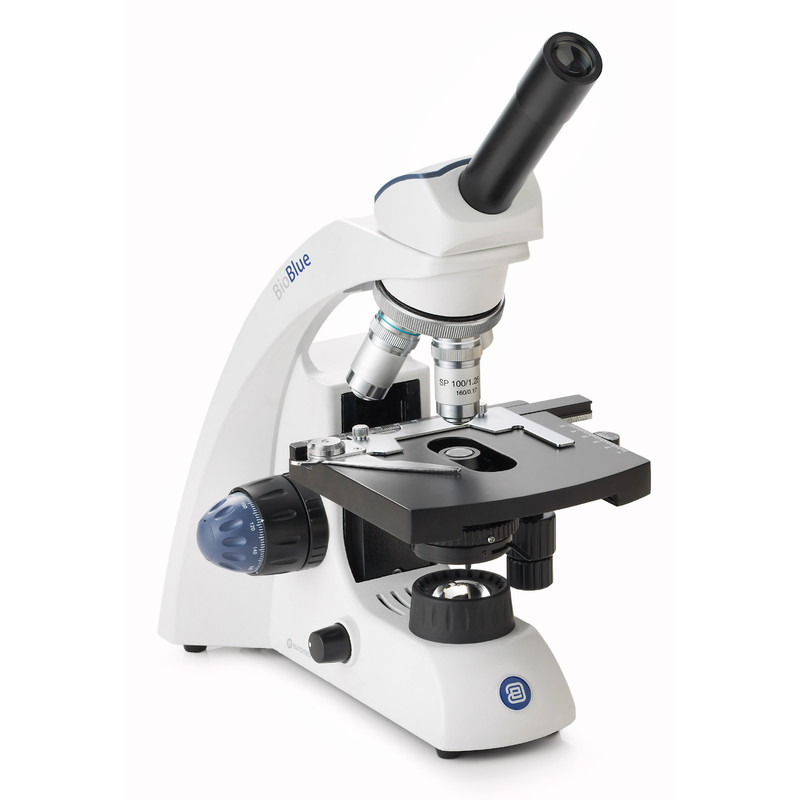

Microscope BioBlue, BB.4220, mono, DIN, 40x-400x, 10x/18, LED, 1W

$ 443.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time
Compare the article with this offer: Omegon Microscope BinoView, achromate, 1000x, LED
Product questions?
advice for Microscopy

Product description

More about the series BioBlue...

Euromex BioBlue

These modern microscopes were specifically developed for education with a special attention for ergonomics and quality. The eyepieces are secured and equipped with an adjustable specimen protection.

  • Wide Field eyepieces HWF 10x/18
  • The eyepieces of monocular models are equipped with a pointer

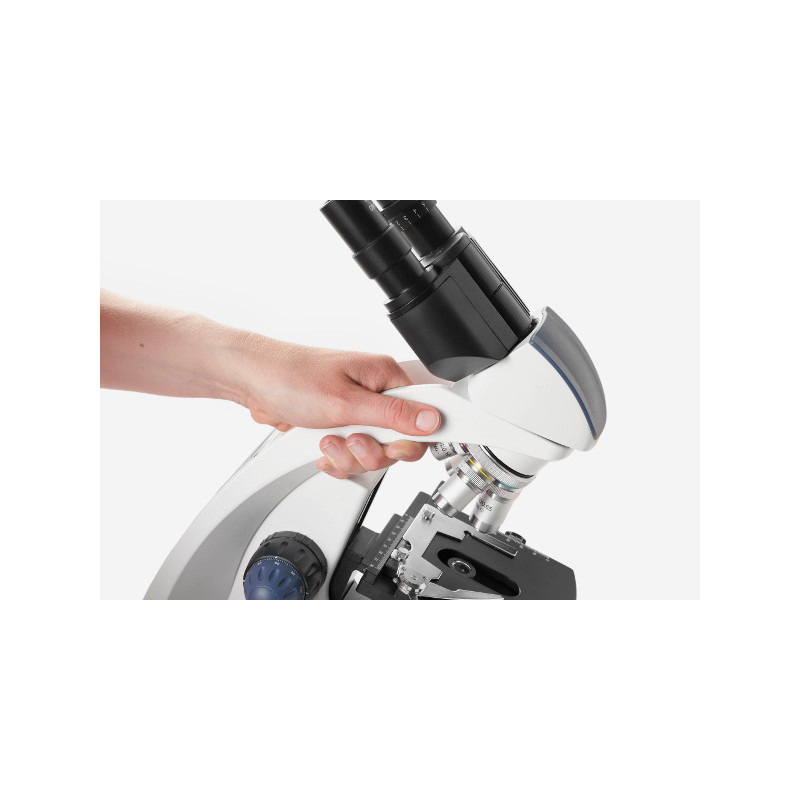

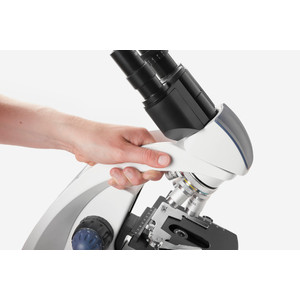

  • Mono- and binocular models, head 360° rotatable
  • Revolving nosepiece for 4 objectives
  • Semi-plan DIN 4x 10x 20x S40x S60x and S100x-oil objectives
  • 120 x 120 mm stage with two object clamps or with integrated X-Y translation stage
  • Adjustable specimen protection mechanism
  • Coaxial coarse and fine adjustment with 0.002 mm graduations
  • Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
  • Adjustable LED illumination with built-in power supply, rechargeable batteries and charger

Specifications

Optics

Image scale
40-400 (4 (N.A. 0.10), 10 (N.A. 0.25), 40 (N.A. 0.65 with specimen protection))
Condensor
NA 1.25 Abbe condenser with iris diaphragm and filter holder, height-adjustable
Lamp type
LED
Lens type
Semi-Plan Achromatic
Eyepiece
10x/18 (Widefield)
Power supply
85-240V, built-in battery charger, detachable power cord
Magnification
40, 100, 400
Optical system
DIN (160mm)

Capacity

Brightness control
yes
brightfield
yes

Mechanics

Viewing posture (°)
45° angled eyepiece, 360° rotatable
Specimen stage
Cross table (120 x 120 mm)
Focusing
Coarse and fine movement (coaxial, with 0.002 mm division)
Type of build
Monocular

Special features

Rechargeable battery operation
yes
Filter holder
yes
Dust cover bag
yes

General

Series
BioBlue

Suitable for

Beginners
yes

Field of application

Hobby
yes
Medicine
yes
Education
yes

Area of application

Veterinary medicine
yes
Primary School
yes
Secondary school
yes
show more...

Product safety

manufacturer: Euromex Microscopen bv, Papenkamp 20, 6836 BD Arnhem, NL, http://www.euromex.com (neu), http://www.euromex.nl/de
