Astronomy > Telescope accessories > Astrophotography > Cameras > Astronomical Cameras > Orion > StarShoot > Orion Camera StarShoot G10 Deep Space Color
Product no.: 61834

Camera StarShoot G10 Deep Space Color

$ 1,380.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

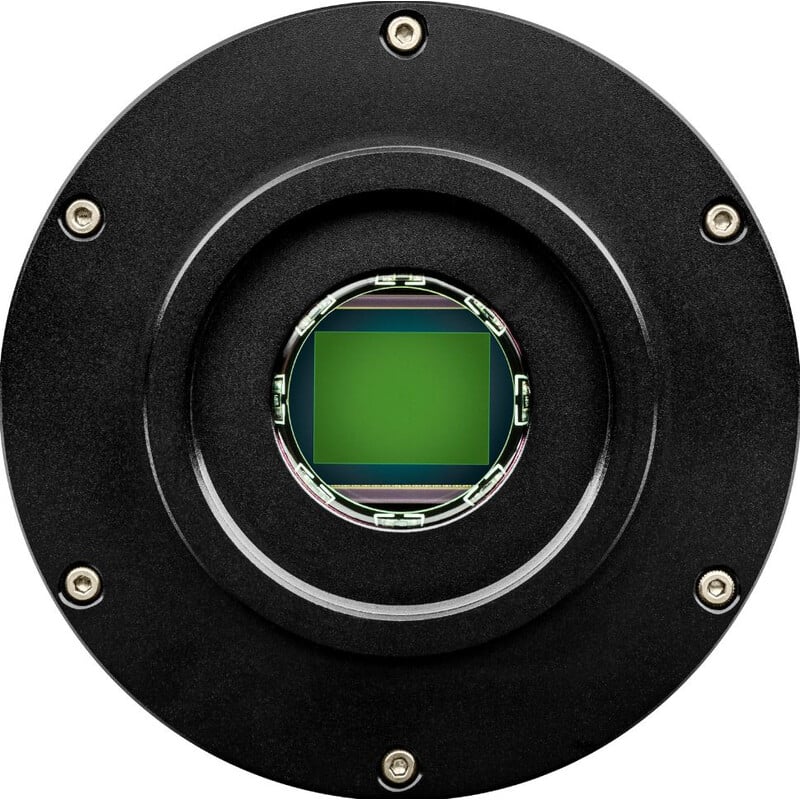

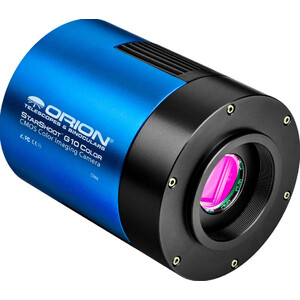

The Orion Starshoot G10 Color CMOS Imager is a extremely sensitive deep-sky astro imaging camera, based on the Sony IMX294CJK Type 4/3 14-bit CMOS chip, with 4.63 micron pixels, and a factory spec'd 10.7M effective pixel array. Multiple resolution/aspect ratios are available in software. Exposures from 0.1ms-1000s and up to 30+ fps means you can shoot planets as well as nebulae. You'll be amazed at the results, all for a modest investment.

The StarShoot G10 features a two-stage regulated thermo-electric cooler with fan, capable of reaching 35º C below ambient, which dramatically reduces noise. And the USB 3.0 interface provides exceptionally fast frame rates and downloads. Power for the camera electronics comes through the USB port, and the TE cooler is powered by an included AC adapter.

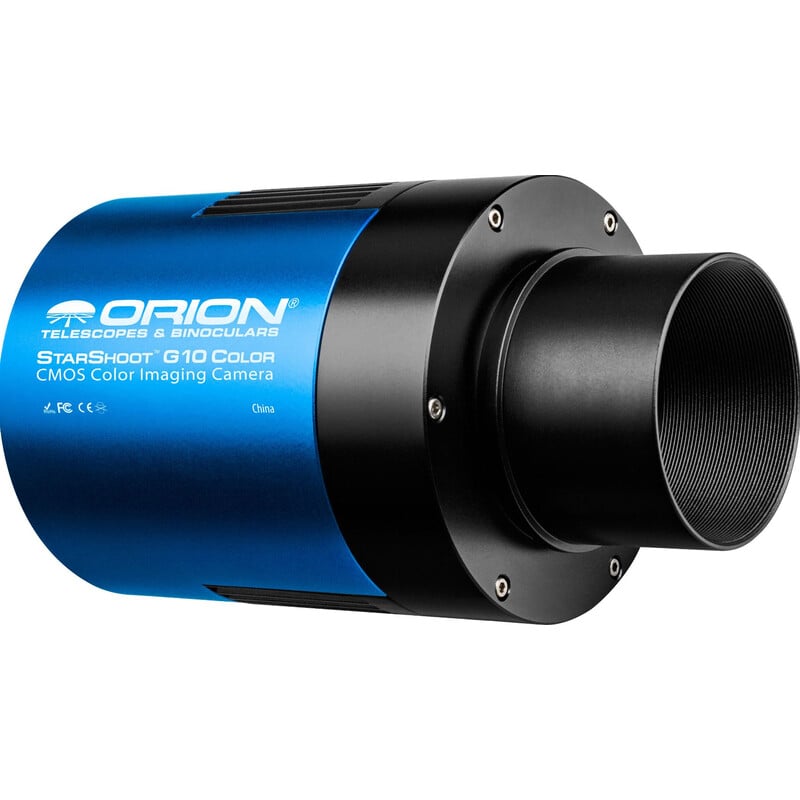

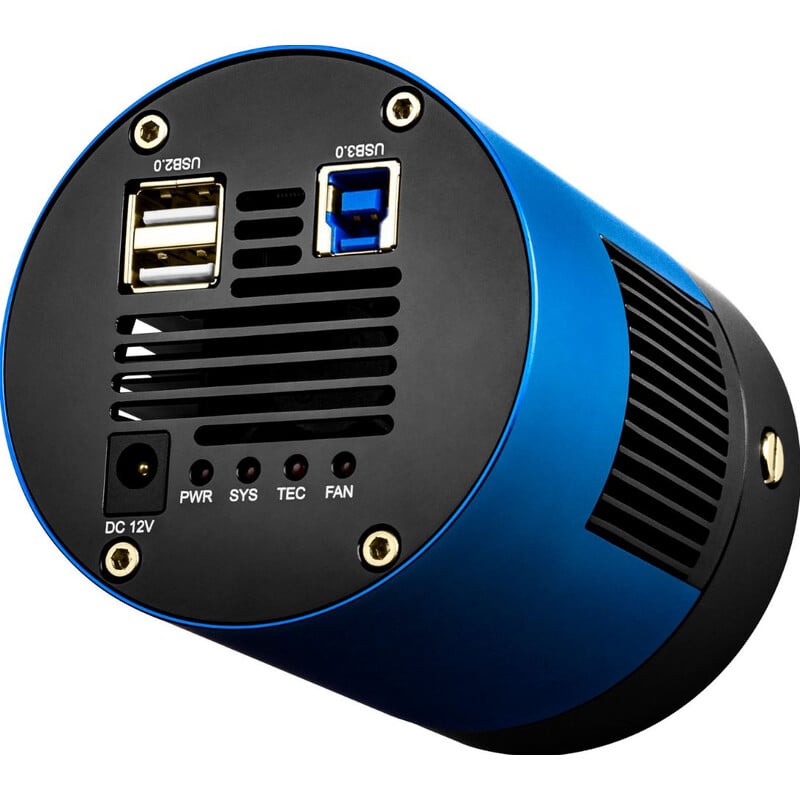

A standard t-threaded front opening, with an included 2" nozzle means you can attach the G10 camera to most all telescope configurations, including coma correctors, flatteners, and off-axis guiders. And with a built in two-port USB2.0 hub, that filter wheel and guidescope camera can be wired directly to the G10, which means you'll only have the one USB cable running to your laptop, making cable management much less of a headache!

The one-shot color CMOS chip excels at seeing very faint objects in a short exposure, and adjustable gain means you can boost the sensitivity in a given exposure. Imagine how much easier it is to stack a series of short exposures — less problems with guiding or satellites or airplanes ruining an individual shot.

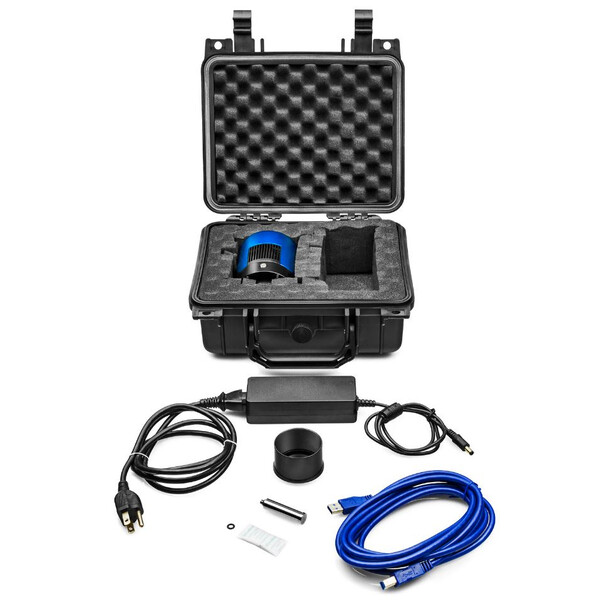

Compatible with Win 7/8/10, and the camera includes a hard case, along with free control and image acquisition software. And best of all, the G10 is ASCOM compatible, meaning you can use most dedicated astro-imaging software on the market to unlock the full potential of your new StarShoot G10 camera!

Colour or mono? Black and white cameras have the advantage of higher sensitivity and resolution than colour cameras. However, more effort is required to obtain a colour image. You also need colour filters and a filter wheel

Specifications

Capacity


Sensor type
CMOS Chip (Sony IMX294CJK Type 4/3)
Megapixel
10,7
Resolution Photograph (Pixel)
4128 X 2808
Pixel size
4,63
Interfaces
USB 3.0, 2xUSB 2.0
Bit depth (Bit)
14
Active cooling
yes
Connection (to the telescope)
T2 (M42 x 0,75)
Colour camera
yes
Min. exposure time
0,1 ms
Max. exposure time (min)
1000
Images per second
30
Full Well Capacity
66.600
Flange focal distance (mm)
17,5
Reading noise
1,12
Cable length (m)
2
Supported operating systems
Windows 7/8/10
Chip - Diagonal (mm)
23
Quantal efficiency
76
Max. cooling difference below room temperature
35
Binning
1x1, 2x2, 3x3, 4x4
Shutter
Rolling Shutter
Input voltage
12
Amperage (A)
3
buffer memory
512

Special features


Infrared filters
yes

Equipment


Filter wheel
no
Barrel adaptors
2"
Transport cases
yes
Cable
USB
Power pack
yes

General


Weight (g)
535
Series
StarShoot
Diameter (mm)
80
Length (mm)
103

Area of application


AllSky, Meteore
no
Autoguider
no
Moon & Planets
yes
Nebulae & galaxies
yes
