Product no.: 55186

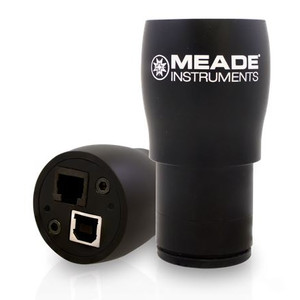

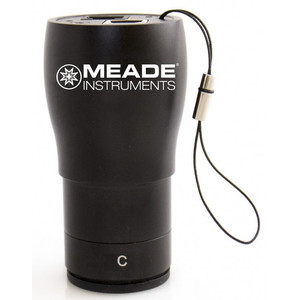

Camera LPI-G Mono

$ 137.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

No delivery possible before christmas
Check alternatives on stock or order a voucher!


Product description

More about the series LPI-G...

As the name implies, the Lunar, Planetary Imager & Guider (LPI-G) is an ideal camera for photographing the Moon, planets and - with suitable filters - the Sun. The camera can also be used as an auto-guider - it works via an ST-4 connector and the required ASCOM interface.

Speed ​​is important in a planetary camera - the LPI-G delivers 28fps at full resolution and 30fps at 640x480 - allowing you to record a video in which the air turbulence in the individual images is effectively 'frozen'. This video can then be used to superimpose the best images to give a summed exposure (known as 'stacking').

The included software has the image acquisition and editing software required: Meade SkyCapture.

In addition to the software, the camera also comes with a USB cable, an ST-4 cable and a 1.25" nosepiece to allow you to connect the camera to the telescope via the C-thread or into the focuser like a 1.25" eyepiece.

Colour or mono? Black and white cameras have the advantage of higher sensitivity and resolution than colour cameras. However, more effort is required to obtain a colour image. You also need colour filters and a filter wheel

Specifications

Capacity


Sensor type
CMOS Chip (AR130)
Size of chip (mm)
4,8 x 3,6
Megapixel
1,2
Pixel size
3,75
Resolution Photograph (Pixel)
1280 x 960
Bit depth (Bit)
12
Active cooling
no
Interfaces
USB 2.0 & ST-4
Connection (to the telescope)
1,25"
Colour camera
no
Operating temperature
-10 / +50
Images per second
28 (at full resolution)
Power supply
5 (via USB)
Supported operating systems
Microsoft Windows, Mac OS, Linux
Chip - Diagonal (mm)
6
Video format
SER, AVI
Image format
JPEG, BMP, FITS
Autoguider
yes
Software
Meade SkyCapture
Cable length (m)
2

Equipment


Filter wheel
no
Connection (to the telescope)
1.25″ nosepiece-to-C /CS mount male adapter
Other contents
USB cable

General


Weight (g)
68
Series
LPI-G

Area of application


AllSky, Meteore
no
Autoguider
yes
Moon & Planets
yes
Nebulae & galaxies
no

Recommended accessories

Astronomy > Filters (3)
Filters

Meade Filters RGB Color Filter Set 1,25"

$ 126.00*
Astronomy > Other (2)
Camera bracket

Omegon CMOS camera mount

$ 49.90*

*All prices include VAT plus shipping costs.

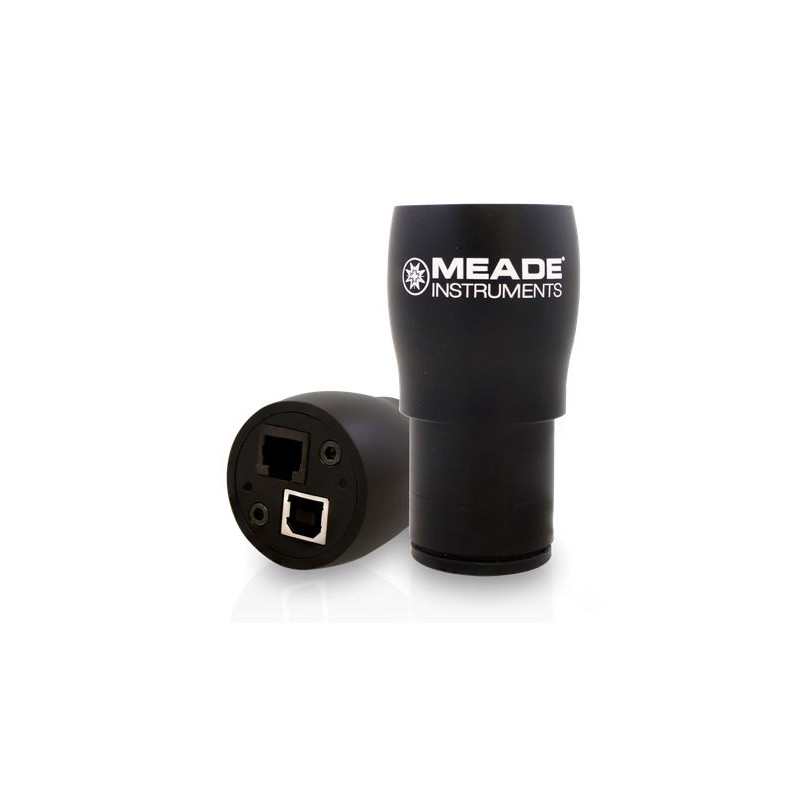

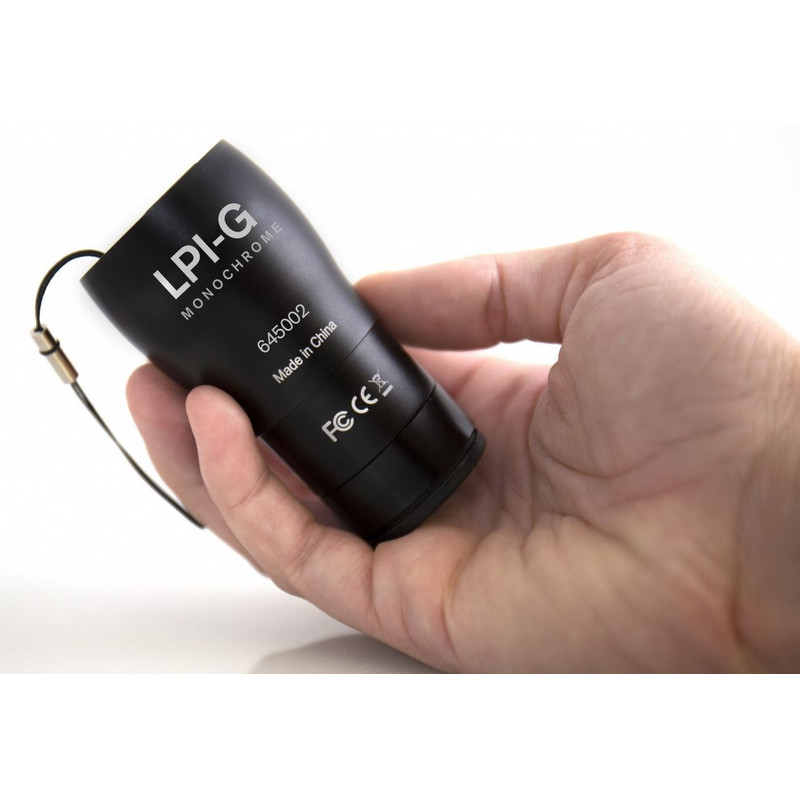

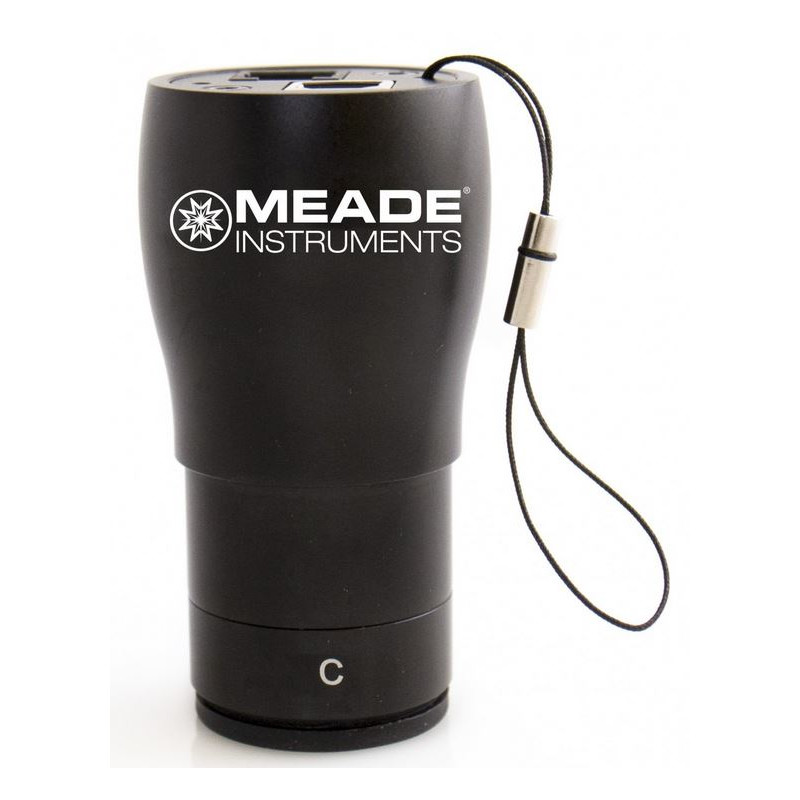

Meade Camera LPI-G Mono

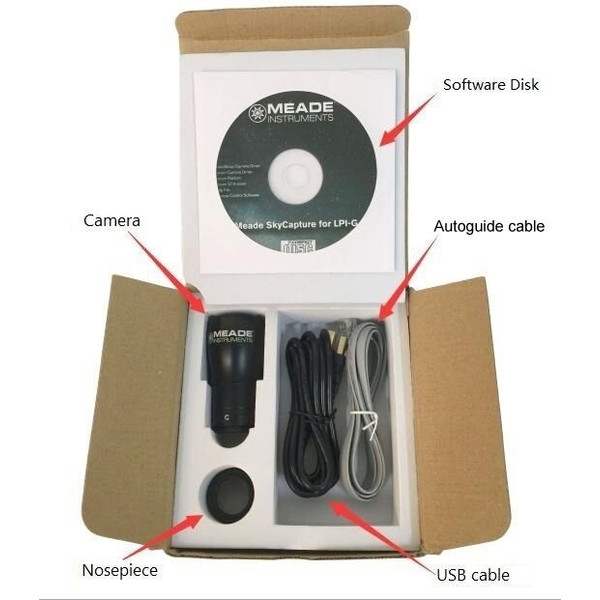

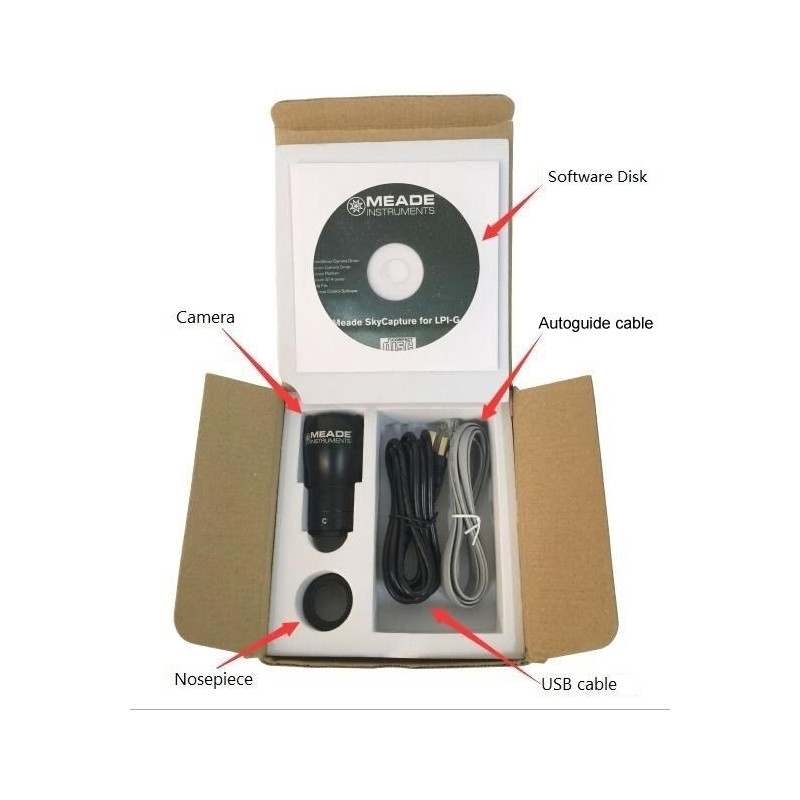

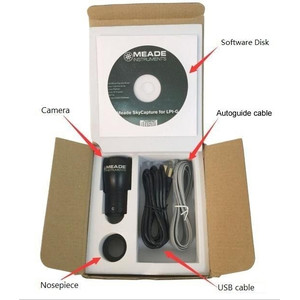

Scope of delivery
Meade Camera LPI-G Mono

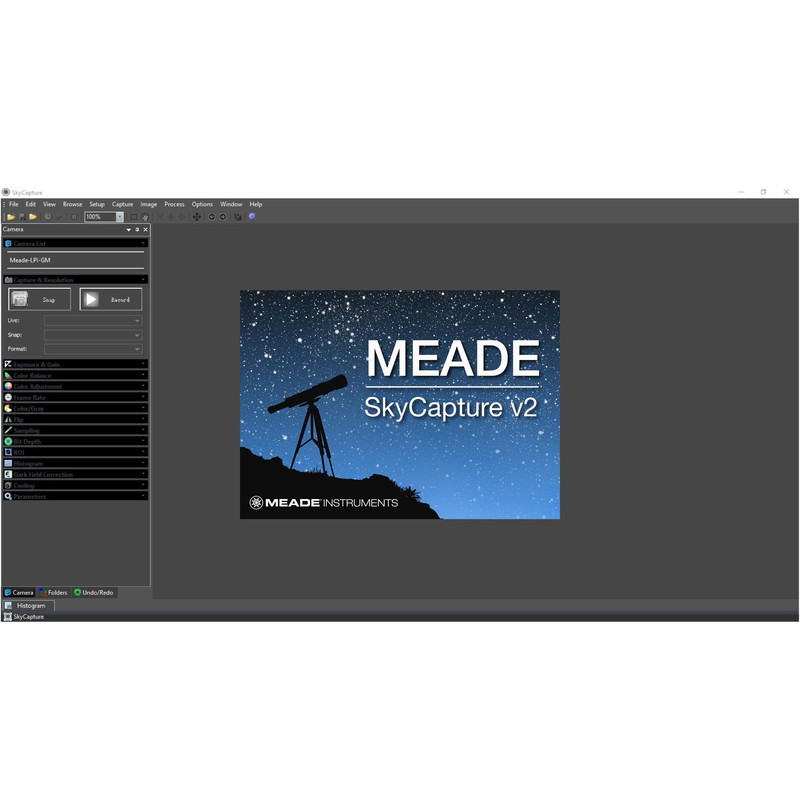

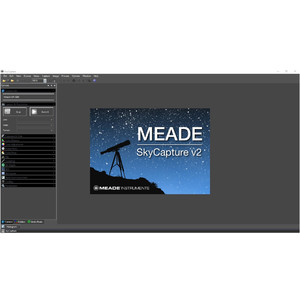

Meade SkyCapture
Meade Camera LPI-G Mono
Example image 1

Meade Camera LPI-G Mono

Example image 2
