Astronomy > Mounts & accessories > Mounts > Alt-azimuth with GoTo > iOptron > HAZ > iOptron Mount HAZ130 Strain Wave Alt-AZ
Product no.: 85418

Mount HAZ130 Strain Wave Alt-AZ

$ 9,700.00 incl. VAT plus shipping costs
too expensive?
long-term
Product can be shipped as of 30.06.2025 + lead time
  • Computerised controls with handbox controller
  • Strain wave gear drives, SWG

Product description

Introducing the iOptron HAZ130 Alt-Az mount with dual strain wave gear drives. The HAZ130 is our highest capacity SWG mount to date and is designed to accommodate instruments as large as our 20” F/8 RC truss OTA (carries a payload up to 132lbs)! The mount offers full Go To pointing and Alt-Az tracking utilizing its 8411 hand set with OLED display or by independent computer control.

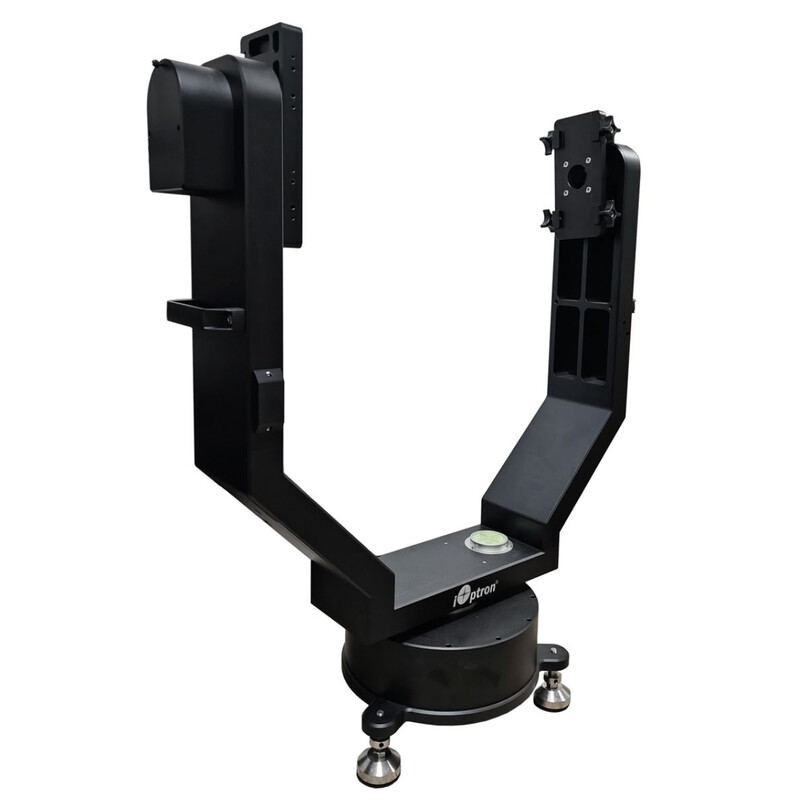

The all metal CNC machined fork mount design offers optimal stability for tracking and imaging. Two adjustable Losmandy-style saddles accommodate the attachment of various-sized instruments. The SWG drive system is perfect for unbalanced payloads and includes a unique friction brake to stop movement during a planned or unplanned power interruption safely. The wide stance adjustable base features a high-precision leveling indicator to ensure the highest level of precision in Go To pointing accuracy. Speaking of precision, the SWG gear system is driven by quiet, reliable stepper motors.

Other features include, mounting holes for NUC computers as well as other devices, built-in GPS, USB communication ports, 180° altitude and 360°azimuth movement ranges, low power consumption and more.

Not only is the HAZ130 a capable tool for both visual astronomy and imaging, it is designed to work with the latest satellite tracking software making it an excellent antenna platform for radio communication enthusiasts.

Specifications

Capacity


Max. additional load capacity (kg)
60
Interfaces
USB
Language
English
Mounting saddle
Losmandy-Style
Weight mount head only (kg)
32
Input voltage
12
Amperage (A)
5
Cable-guide
internal
Motor type
Stepper motors
Counterweight(s) (piece)
0 (Fork mounting)
Drive type
Harmonic / Strainwave
Material
Aluminium
Slewing speeds
6

Special features


GoTo system
yes
Handcontroller
yes
Level
yes

Equipment


Counterweights (piece)
0
Power pack
yes

General


Type
Mount
Type of build
Azimuthal
Series
HAZ

GoTo control


GPS
yes
GoTo Language
English
Interfaces
USB 2.0
Database
212.000
with hand paddle
yes

Product safety

Manufacturer: iOptron Corporation - Air Freight Orders, 1 Merrill Street, MA 01801 Woburn, US, [email protected]
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]

Recommended accessories

Astronomy > Telescope accessories (3)

Omegon Powerbank 38k 144Wh 12V

$ 189.00*

*All prices include VAT plus shipping costs.

iOptron Mount HAZ130 Strain Wave Alt-AZ

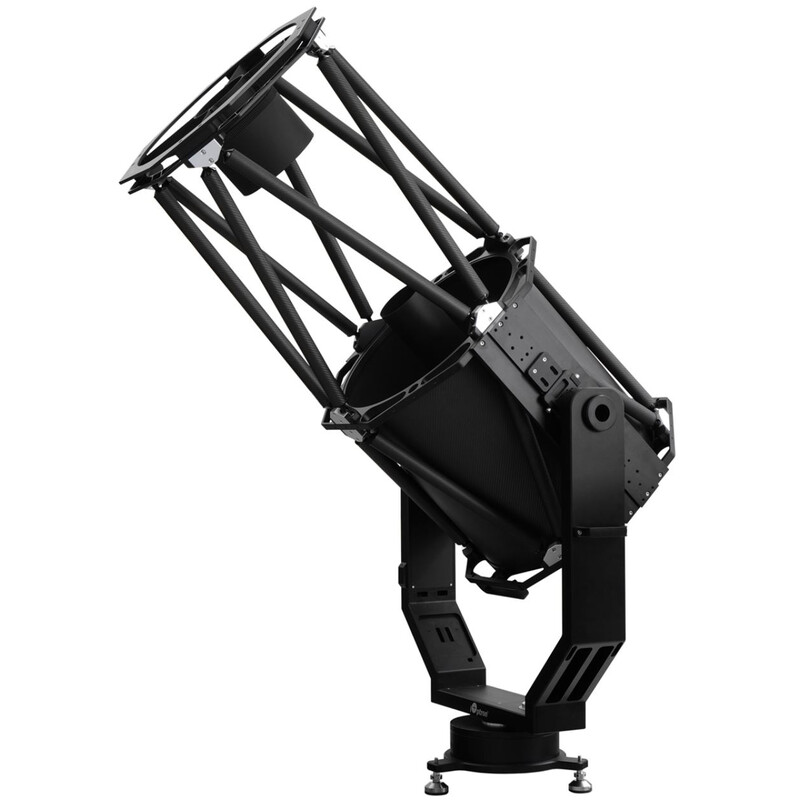

Example of use
