Astronomy > Mounts & accessories > Mounts > Alt-azimuth with GoTo > iOptron > AZ Pro > iOptron Mount AZ Pro GoTo Tri-Pier
Product no.: 55799

Mount AZ Pro GoTo Tri-Pier

RRP: $ 2,730.00 Our price:
$ 2,620.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

No delivery possible before christmas
Check alternatives on stock or order a voucher!


Product description

Introducing the AZ Mount Pro featuring "level and go" intuitive GOTO setup

We call it "level and go", the term used to describe iOptron new AZ Mount Pro's simple set up routing. Using its built-in precision level indicator, the operator simply levels the mount and turns on the power; this capable computerized alt-azimuth telescope mount takes it from there. Utilizing the on board 32 channel GPS receiver and built-in position and angular detection sensors; the AZ mount Pro calculates its global position as well as the telescope orientation. Automatically he mount slews the instrument to an easily identifiable bright object in the night sky. The user need only confirm a bright object is in the center of the view, to activate tracking and GOTO functionality.

Features:

  • On board rechargeable lithium ion battery for up to 10 hours of use
  • 33lb primary payload and 10lb secondary payload capacity, with a mount weighing only 13lbs
  • Whisper quiet low-power consumption stepper motors
  • Go2Nova® 8407 hand controller featuring 212K+ object library with an 8 line illuminated LCD screen
  • Zero backlash driver system
  • Built-in WIFI adapter for full ASCOM, iOptron CommanderTM and Sky Safari wireless control
  • Serial port for computer control and firmware upgrades
  • Retractable counter weight shaft
  • Position memorization at power interruption
  • Die-cast aluminum body
  • 3-Point easy level adjustment
  • 6 inch dual dovetail saddle (Losmandy/Vixen styles)
  • Stands a mere 10 inches tall (mount head only)
  • Built-in 32-channel GPS receiver
  • Automatic position and angular detection sensors
  • Aluminum Hard Case

The iOptron Tri-Pier combines the strength and stableness of a pier with the levelling flexibility of a tripod:

  • Aluminum pier and leg tops
  • Stainless steel leg extensions
  • The Tri-Pier feet has built-in vibration suspension pads.

Specifications

Capacity


Max. additional load capacity (kg)
15
Counterweight(s) (piece)
1
Mounting saddle
Losmandy & Vixen
Motor type
Stepper motors
Weight (g)
4500
Battery-powered
yes
Battery durability (h)
10
Battery type
Internal Li-Ion battery
Material of worm wheel
Aluminium
Material of worm gear
Brass

Special features


GPS
yes
GoTo system
yes
Handcontroller
yes
PC interface
yes (WIFI)
Controllable via PC
yes (ASCOM)
Level
yes

Equipment


Accessory plate
yes
Other contents
Power pack
Tripod
Tripod
Transport cases
yes

Tripod


Tripod material
Steel
Tripod weight (kg)
11,7
Max. tripod height (cm)
108
Stand column
yes

General


Total weight (kg)
23
Series
AZ Pro
Type
Mount
Type of build
Azimuthal

GoTo control


GPS
yes
Precision
0,002
Database
212.000
Software
Go2Nova 8407
GoTo Language
English

Product safety

manufacturer: iOptron Corporation - Air Freight Orders, 1 Merrill Street, MA 01801 Woburn, US, [email protected]
resp_person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]

Recommended accessories

Astronomy > Telescope accessories (5)
Carry case

Artesky Carry case iOptron Tri-Pier

$ 104.00*
Astronomy > Mounts & accessories (6)

iOptron AZ Mount Pro Altitude Lock Lever

$ 41.90*

*All prices include VAT plus shipping costs.

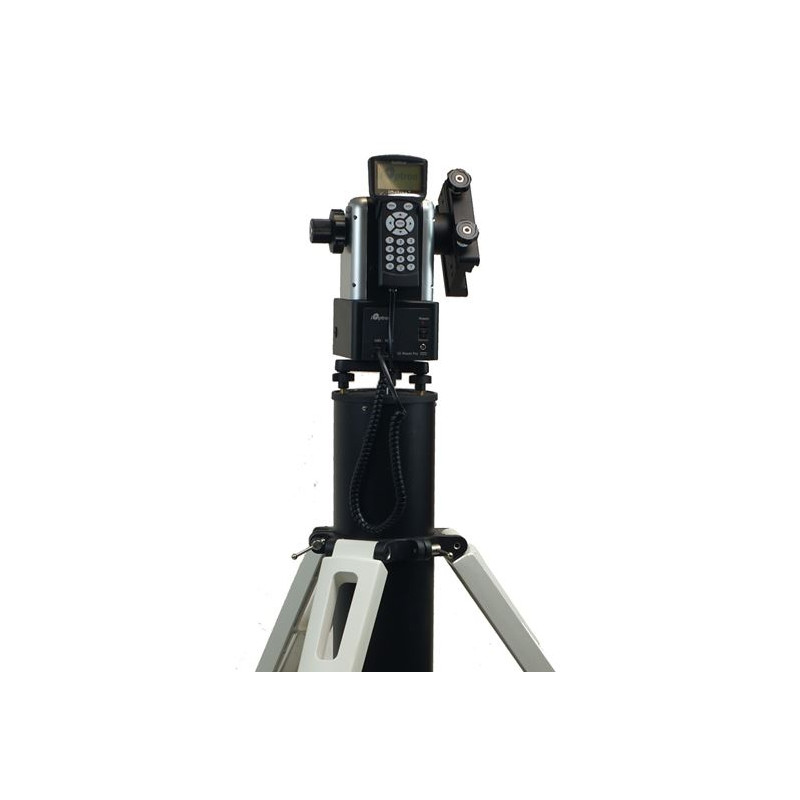

iOptron Mount AZ Pro GoTo Tri-Pier

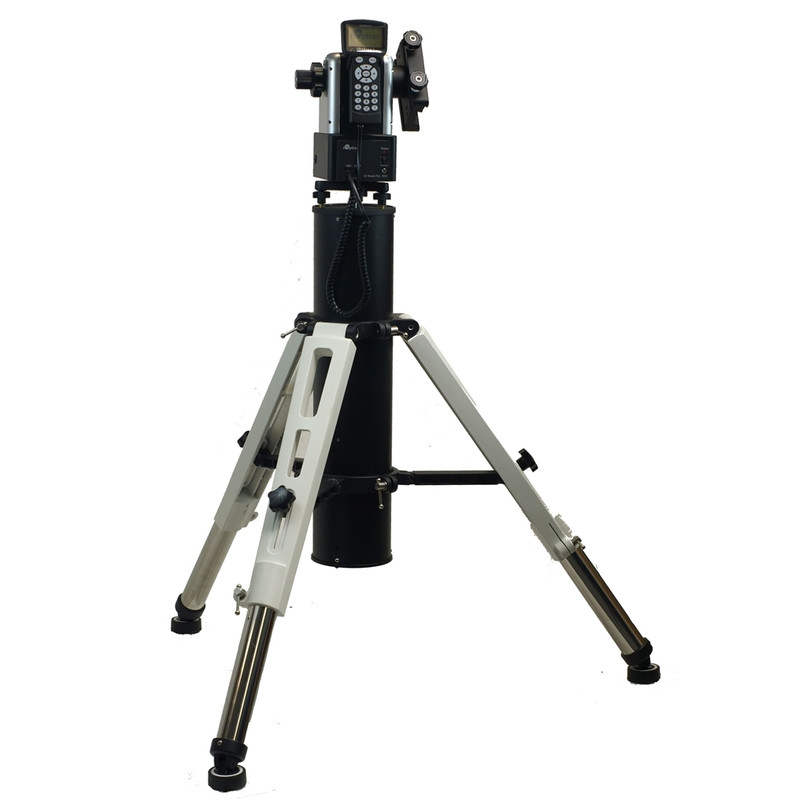

iOptron Mount AZ Pro GoTo Tri-Pier
