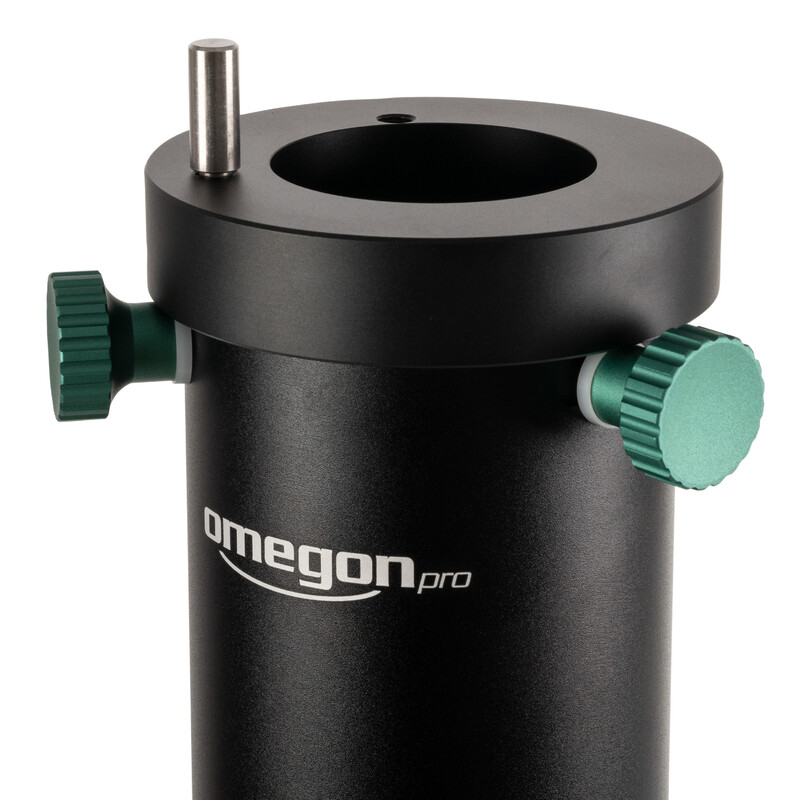

Skywatcher mount adapter for Pro Column

Compatible with this mounts: NEQ-3, NEQ-5, HEQ-5, AZ/EQ5 PRO, Meade LX85 and similar models

Mounting adapters for multiple popular mounts

EQ-3, EQ-5 or a completely different mount? The adapter with recesses for the mount’s pins fits many commercially available models. Your mount can be attached to the column within seconds as the flange is attached using three anodised aluminium screws in the blink of an eye.

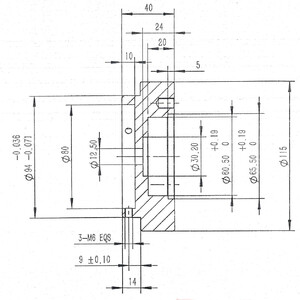

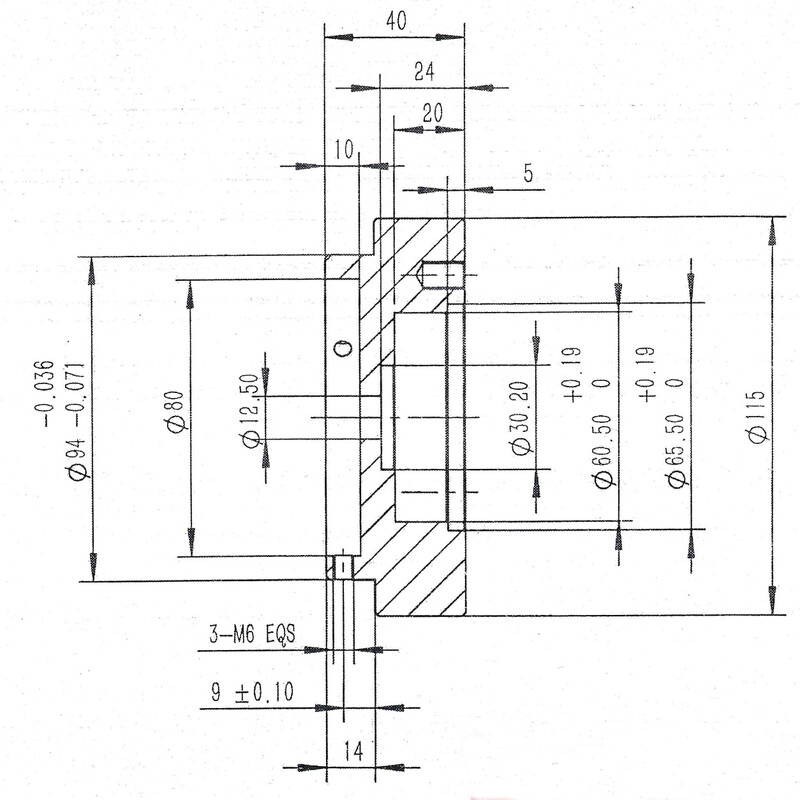

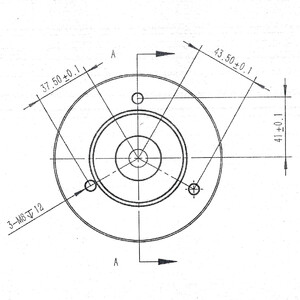

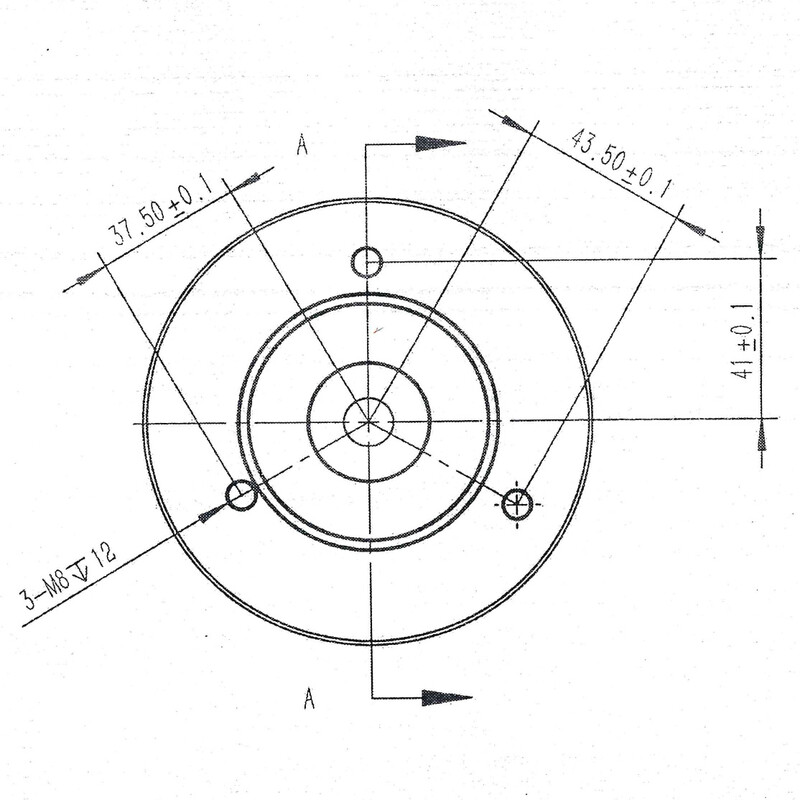

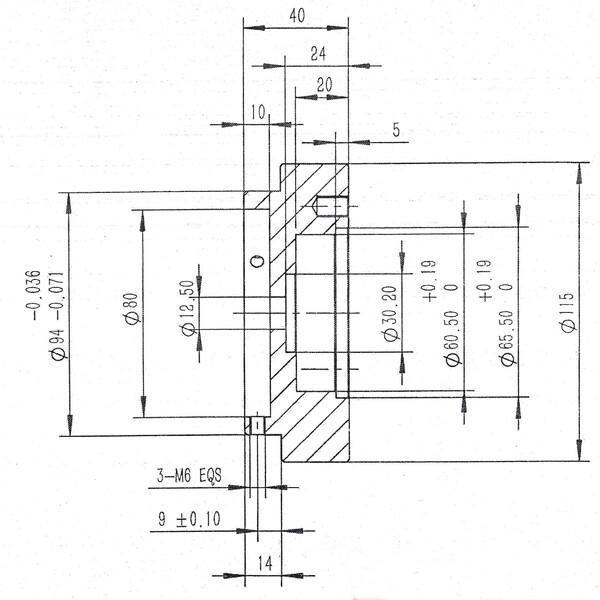

Is your mount compatible? You can find out using the exact dimensions.

• Internal recess diameter: 64.8mm
• Depth: 19.9mm
• Centre bore for connecting bolts: 11mm
• AZ pin height: 25mm
